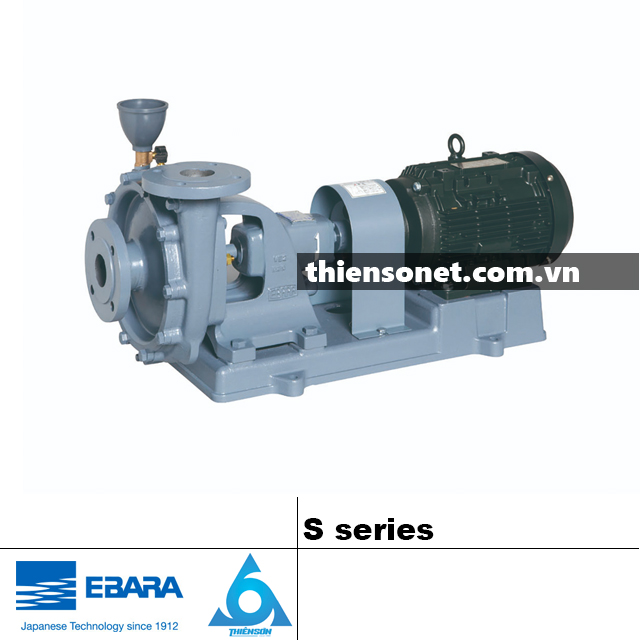

EBARA S series
Máy bơm nước ly tâm rời trục tiêu chuẩn bằng gang
DẢI CÔNG SUẤT: 0.4 - 30kW
DẢI CỘT ÁP: 3.5 - 42m
DẢI LƯU LƯỢNG: 6 - 192m3/h
| Handled liquid | Clear water 0 ~ 80 ℃ | |
|---|---|---|
| Suction total head | -6m (20 ℃) (In the selection diagram discharge weight range within) |
|
| Standard allowable pushing pressure | 0.3MPa {3kgf /cm2} : Other than the following models 0.4MPa {4kgf /cm2} : 40SF, 50SE, F, 65SE |
|
| Construction | Impeller | Closed |
| Shaft seal | grand packing | |
| Bearings | sealed ball bearings | |
| Flange | JIS 10K type (thin) | |
| Material | Casing | FC200 |
| Impeller | FC150: other than the following models SUS304: 40SF, G : 50SF, G |
|
| Main axis | SUS403 | |
| Motor | The number of phase-poles | three-phase, 4-pole |
| Voltage | 200 / 220V: 37kW or less 200/220 · 400 / 440V: 45kW or more |
|
| Format-protection scheme | all enclosed fan-cooled · IP44 (indoor) | |
| Efficiency | IE3 (Premium efficiency) | |
| Installation Place | indoor | |
